History of the Bowstring Truss Bridge Because materials are used so efficiently, the truss bridge is economical to construct and is one of the oldest types of modern bridges. The bowstring arch through truss bridge was patented in 1841 by Squire Whipple (1804-1888), a self-taught engineer from New York.

How does a bowstring truss bridge work?

Bowstring truss bridge: an arched beam (the bow) joined at each end by a straight beam (the string), with diagonal support beams joining the two. Whipple was born in Hardwick, Massachusetts in 1804 the son of a farmer. ... The young Whipple was therefore exposed to construction and materials at an early age.

What is Baltimore truss?

The Baltimore truss is a subclass of the Pratt truss. A Baltimore truss has additional bracing in the lower section of the truss to prevent buckling in the compression members and to control deflection. It is mainly used for train bridges, boasting a simple and very strong design.

What is a Warren Truss used for?

The Warren truss is perhaps the most common truss for both simple and continuous trusses. For smaller spans, no vertical members are used lending the structure a simple look. For longer spans vertical members are added providing extra strength. Warren trusses are typically used in spans of between 50-100m.

What is the strongest truss shape?

I think the warren-truss design will be the strongest because it is the simplest design and spreads the weight of the load evenly over the bridge. Popsicle sticks and glue were used to build 3 different bridge designs: Pratt truss, Warren truss, and K truss. 5 identical models of each design were built.

Flemish Twist Bowstring (Quick and Easy)

What are the 3 types of trusses?

• King Post truss. A king post truss is typically used for short spans. ...
• Queen Post truss. A queen post truss is typically a vertical upright with two triangles either side. ...
• Fink truss. ...
• Double Pitch Profile truss. ...
• Mono Pitch Truss. ...
• Scissor Truss (also known as Vaulted Truss) ...
• Raised Tie Truss.

What are the 5 types of truss bridges?

• Pratt. The Pratt truss bridge utilizes diagonal and vertical beams. ...
• Howe. The Howe truss bridge is similar to the Pratt design with only a few differences. ...
• K Truss. The K truss bridge literally makes a backward 'K" shape along the structure of the bridge. ...
• Bailey. ...
• Warren. ...
• Bowstring.

What is the difference between a through truss and a deck truss?

Through Vs Deck? A Through Truss refers to a truss on top of a bridge and a Deck Truss refers to a truss under a bridge. Through and deck trusses have opposite force distribution.

How much does a truss bridge cost?

In general, the average price of a 20 linear foot fiber-reinforced polymer Truss Bridge is $10,000. Please note that is an average cost estimate. You will need to address the many design considerations to determine the total cost. And when it comes to bridge cost, the price is broken down into cost per foot.

What is the longest tied arch bridge in the world?

Tied arch bridges include the Langer, Lohse, and Nielsen types. The applied spans are generally about 50 to 170 meters, and the longest arch bridge in the world is the Shanghai Lupu Bridge, with an effective span of 550 meters.

What is bad about a tied arch bridge?

But tied-arch bridges are not perfect. They can have poor welds at the connection between the arch rib and the tie girders, and at the connection between the arch and vertical ties. These welds, after some time have to be repaired which is costly, time-consuming and an inconvenience.

What forces act on a tied arch bridge?

Tension is a force that acts to expand or lengthen the thing it is acting on. An arch bridge is a semicircular structure with abutments on each end. The design of the arch, the semicircle, naturally diverts the weight from the bridge deck to the abutments. Compression Arch bridges are always under compression.

How old is the arch bridge?

Possibly the oldest existing arch bridge is the Mycenaean Arkadiko Bridge in Greece from about 1300 BC. The stone corbel arch bridge is still used by the local populace. The well-preserved Hellenistic Eleutherna Bridge has a triangular corbel arch. The 4th century BC Rhodes Footbridge rests on an early voussoir arch.

When was the bowstring truss invented?

The bowstring arch through truss bridge was patented in 1841 by Squire Whipple (1804-1888), a self-taught engineer from New York. The bowstring truss, or bowstring arch bridge, is the bridge type that began the transition away from wood and stone, toward metal as a common bridge building material.

What is Pratt truss?

: a truss having vertical members between the upper and lower members and diagonal members sloping toward the center.

What are truss bridges made out of?

Truss bridge, bridge with its load-bearing structures composed of a series of wooden or metal triangles, known as trusses. Given that a triangle cannot be distorted by stress, a truss gives a stable form capable of supporting considerable external loads over a large span.

What is a bowstring truss?

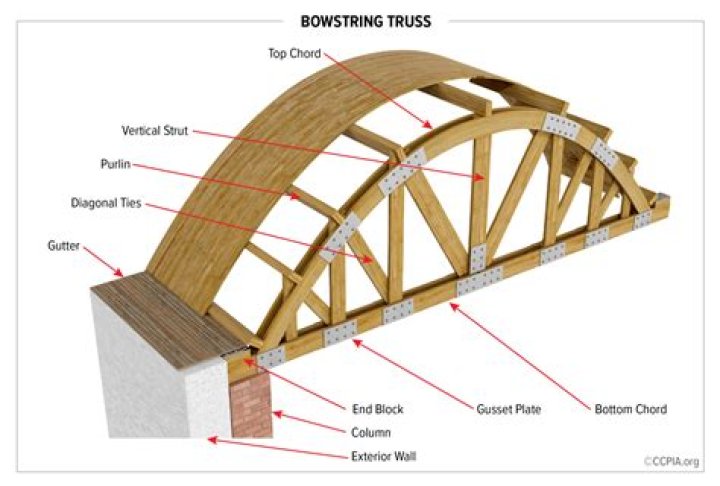

A bowstring truss is a structural device commonly used in bridge-building and, less often, in industrial architecture. Used to span wide, column-free spaces, it consists of an arched beam (the bow) joined at each end by a straight beam (the string), with diagonal support beams joining the two.

What is a truss girder?

What is a Girder Truss? Girder Trusses have a long, straight design. They have a top chord and a bottom chord separated by diagonal webs and vertical webs. ... Primarily, the role of a girder truss is to support other structural elements in the frame, such as traditional trusses, rafters or purlins.

What is the strongest bridge in the world?

Firth of Forth Bridge

Notably one of the strongest bridges in the world, the Firth of Forth had to be strong since its primary function was for railroad loading. Today, this Highlands workhorse still supports between 150 and 180 trains each day taking people from Glasgow to Edinburgh and all stops in-between.

Which truss design can hold the most weight?

The arch bridge can hold the most weight, the deck bridge can hold an average amount of weight, and the beam bridge can hold the least amount of weight.

What is the strongest type of bridge?

An arch bridge is stronger than a beam bridge, simply because the beam has a weak point in the center where there is no vertical support while arches press the weight outward toward the support.

What is a perfect truss?

Structure is made of members just sufficient to keep it in equilibrium, when loaded without any change of shape. N = 2j – 3 where 'n' is the number of members and 'j' no of joints. It is efficient and optimized structure.

Is it cheaper to build or buy trusses?

Today, over 80% of new homes are built with trusses, rather than rafters. The main reason for this is cost. In raw material alone, trusses are 40% to 60% cheaper than making a roof using rafter or “stick” construction.

What is the simplest truss?

The simplest form of a truss is one single triangle. This type of truss is seen in a framed roof consisting of rafters and a ceiling joist, and in other mechanical structures such as bicycles and aircraft.
