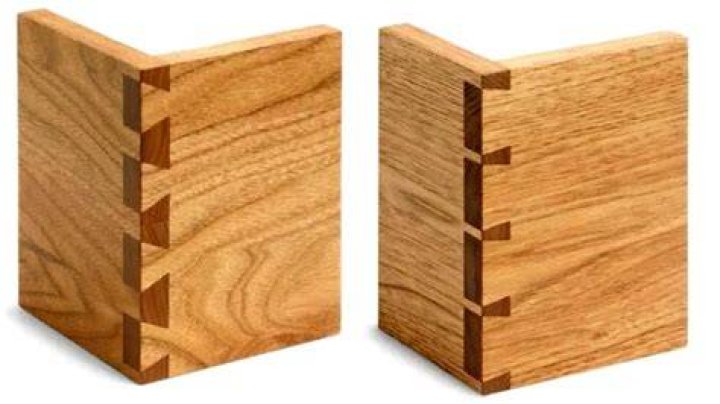

Dovetail joints are commonly used to build boxes, drawers, and cabinets. The shape of the "tails and pins" in the joint make it nearly impossible to break. Glue is used to strengthen the joint but no screws or fasteners are necessary.

When were dovetail joints used?

The English cabinet maker first started using the dovetail joint in the mid 17^th Century on walnut furniture and carried on doing this by hand until the late 19^th century when they were produced by machines, mainly in the Edwardian periods.

Where is the dovetail used predominantly?

Dovetail joints are predominantly used in wooden components but can also be found in other non-wood components and products such as lathes, turbine blades, clock gears, and large 3D printed components. The manufacturing of these joints have largely been done by CNC milling machines that use specialized tools.

What are the uses of dove tail joint?

• The joint is used to join the sides of a drawer.
• It is used on a small box-like jewellery box.
• For joining shelves to cabinet sides.
• And other furniture joints where strength is required.
• The sliding dovetail is used for joining neck and body in violins and some guitars.

Why it is called dovetail joint?

Dovetail joints are made up of two parts called pins and tails. When a master craftsman wants to marry two boards together, they cut a series of pins on one board and matching tails on the other. They are trapezoidal in shape, resembling the tail feathers of a dove (hence the name dovetail).

How to cut a DOVETAIL JOINT by HAND

What are the disadvantages of a dovetail joint?

The disadvantages of dovetail joints are that they can be fairly difficult to mark out and cut, and if they are made badly these joints lose the advantages listed above. Depending on the project, function, and design, there are a number of different types of dovetail joints to choose from.

Is dovetail joint strong?

Dovetail joints are very strong by design and they also offer an attractive finish that is a true sign of craftsmanship. Professionally cut and glued dovetail joints are virtually impossible to separate.

Who invented dovetail joint?

The dovetail joint technique probably pre-dates written history. Some of the earliest known examples of the dovetail joint are in ancient Egyptian furniture entombed with mummies dating from First Dynasty, the tombs of Chinese emperors, and a stone pillar at the Vazhappally Maha Siva Temple in India.

What is the strongest wood joint?

One of the strongest woodworking joints is the mortise and tenon joint. This joint is simple and strong. Woodworkers have used it for many years. Normally you use it to join two pieces of wood at 90-degrees.

When was dovetail first used?

When the joint first came into its own, late in the 17th century, it was thought that fewer and larger dovetails made for a stronger joint. Over the years, however, they were cut smaller and finer, with the pins more numerous.

What is the angle of dovetail joints?

Lower (7° to 9°) angles are often advised for joining hardwoods, while higher angles (10° to 14°) are recommended for softwoods and even higher angles (14° to 18°) for half-blind dovetails.

Do you glue dovetail joints?

Dovetail joints show the care and craftsmanship applied to woodworking projects. A few simple gluing and assembly tips make dovetail joint easier to put together. ... The glue can be applied while the pieces are completely separate, which is easier, but can be messy and difficult to fit joints together.

What is a lapped dovetail joint?

There are several varieties of dovetail joint, but perhaps the most common – and the most familiar – is the lapped dovetail. This is used when you want to hide the joint on one side, but make it visible on the other. Its most common use is in drawer construction.

What is a dovetail plan?

From Longman Dictionary of Contemporary Englishdove‧tail1 /ˈdʌvteɪl/ verb 1 [intransitive, transitive] to fit together perfectly or to make two plans, ideas etc fit together perfectlydovetail with My vacation plans dovetail nicely with Joyce's.

What is a French dovetail joint?

French dovetails have sliding joints and are shorter in height. A piece of furniture with a curved front will always have French dovetails, because English dovetails will not work with that shape. ... If you see one dovetail on each side, they're French dovetails.

Is a dovetail joint stronger than a box joint?

For this test, the box joint proved stronger. Plus, the box joint is strong in both directions, whereas the dovetails are useful only for pulling from one piece, but not the other. So really, to use a dovetail joint for the sake of strength is obsolete, mostly on account of the strength of wood glues.

What are the advantages and disadvantages of dovetail joints?

The interlocking dovetail joint has a large gluing area, further adding to its strength. Hand cut dovetail joints require precise handsaw and chisel skills, and can be fiddly to mark out and cut. If dovetail joints are poorly made they will lose the advantage of strength and durability.

What is the difference between a box joint and a dovetail joint?

A box joint is similar to a dovetail joint. The main difference is that the cuts are not tapered. ... Like a dovetail joint, a box joint forms a 90 degree angle and joins the ends of two perpendicular pieces of wood to form a corner. Box joints are easily cut using a dado blade on a table saw.

What tools do I need to make a dovetail joint?

1. Wood blocks or lengths of wood about 3/4 inch thick by 3 inches wide by 5 inches long.
2. A pencil for marking each piece of wood as needed.
3. A backsaw.
4. A coping saw.
5. Two Chisels in 3/4 inch and 1/2 inch sizes.
6. A mallet.

How tight should dovetail joints be?

Lee Grindinger: The dovetails should be properly snug. Both pieces will move in the same manner, so the pins and tails will not be working against each other. As the tail increases in width the space between the pins does,too, so there is no conflict.
