The first working rotating electric motor was introduced in May 1834 by Moritz Jacobi. In 1838, Jacobi reintroduced an improved and more powerful motor. However, these electric motors were large and weak compared those we use today.

Why is it called a servo motor?

A servo motor is a general term used for a specific kind of linear or rotary actuators. Basically, the name servo motor is related to the term servomechanism, which means that the motor is constantly monitored to control its motion.

What is the difference between DC motor and servo motor?

Servo motors do not rotate freely like a standard DC motor. ... However, unlike DC motors it's the duration of the positive pulse that determines the position, rather than speed, of the servo shaft. A neutral pulse value dependant on the servo (usually around 1.5ms) keeps the servo shaft in the centre position.

Why servo motors are used in robotics?

Servo motors provide numerous benefits in robotic applications. They are small, powerful, easily programmable, and accurate. ... They are used in robotic applications such as: Robotic Welding: Servo motors are mounted in every joint of a robotic welding arm, actuating movement and adding dexterity.

Are servo motors AC or DC?

The main difference between the two motors is their source of power. AC servo motors rely on an electric outlet, rather than batteries like DC servo motors. While DC servo motor performance is dependent only on voltage, AC servo motors are dependent on both frequency and voltage.

What is a Servo Motor and How it Works?

What is the advantage of servo motor?

Servo Motors are used throughout many industries and have the following advantages; High efficiency. High output power relative to their size. More constant torque at higher speed.

Why are DC motors so expensive?

The heavier rotor of the DC motor may require more expensive bearings. The rotor design is probably the most important factor in making the DC motor more expensive. If the DC motor stator has permanent magnets, that could make it more expensive or not depending on the magnet material.

What are the applications of DC servo motor?

• Machine Tool (Metal Cutting)
• Machine Tool (Metal forming)
• Antenna Positioning.
• Packaging.
• Woodworking.
• Textiles.
• Printing.

What are the applications of DC motor?

• Cranes.
• Air compressor.
• Lifts.
• Elevators.
• Winching system.
• Electric traction.
• Hair drier.
• Vacuum cleaner and in speed regulation application.

Can servo motor rotate 360?

The position of the servo motor is set by the length of a pulse. ... The end points of the servo can vary and many servos only turn through about 170 degrees. You can also buy 'continuous' servos that can rotate through the full 360 degrees.

What is servo drive and how it works?

The servo drive controls the servomotor according to instructions from a PLC or other controller and performs feedback control with signals from an encoder or other component. Decelerator. A power transmission mechanism that decreases motor speed and increases torque.

What is servo motor and how it works?

A servo motor works as part of a closed loop system providing torque and velocity as commanded from a servo controller utilizing a feedback device to close the loop. ... A servo motor is part of a servo mechanism consisting of three key elements – a motor, a feedback device, and control electronics.

What is meant by servo?

A servo (servomechanism) is an electromagnetic device that converts electricity into precise controlled motion by use of negative feedback mechanisms. Servos can be used to generate linear or circular motion, depending on their type. ... The desired servo position is input and comes in as a coded signal to the IC.

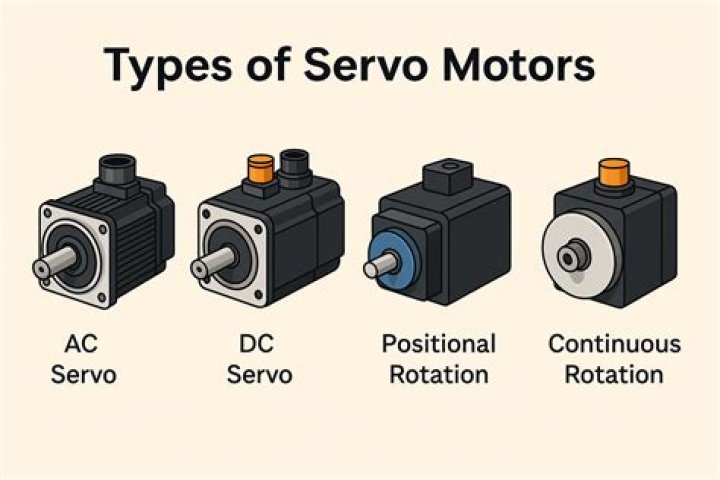

What are the different types of servo motors?

Servo motors can be of different types on the basis of their applications. The most important amongst them are : AC servo motor, DC servo motor, brushless DC servo motor, positional rotation servo motor, continuous rotation servo motor, and linear servo motor.

What are the special features of DC servo motor?

• Precise Control and Accuracy.
• Stable Operation.
• Fast Response.
• Lightweight and portable.
• Four Quadrant operation possible.

What is meant by DC servo motor?

Definition: A type of servomotor that uses DC electrical input to generate mechanical output like velocity, acceleration or position is known as DC servomotor. It is somewhat similar to a normal DC motor.

Which of the following is the application of servo motor?

The servo motor is a small and effective motor and it can be used in some serious applications like precise position control. The controlling of this motor can be done with a PWM (pulse width modulator) signal. The applications of these motors mainly include in industrial robotics, computers, toys, CD/DVD players, etc.

Are AC or DC motors cheaper?

In general, AC motors were smaller, less expensive, lighter and more rugged than DC motors. DC motors, on the other hand, operated better in variable-speed applications, particularly those requiring wide speed ranges, and provided more precise speed control.

How long will a brushless motor Last?

If you are looking for a motor with a long life expectancy, consider a brushless motor. Brushed motor life is limited by the brush type and can attain 1,000 to 3,000 hours on average, while brushless motors can attain tens of thousands of hours on average, as there are no brushes to wear.

What are the disadvantages of servo motors?

• Servos Motors requires tuning to stabilize the feedback loop.
• Servo Motor will become unpredictable when something breaks. ...
• Complex controller requires encoder and electronic support.
• Peak torque is limited to a 1% duty cycle.

What are the disadvantages of DC motor?

• High initial cost.
• Increased operation and maintenance cost due to the presence of commutator and brush gear.
• Cannot operate in explosive and hazard conditions due to sparking occur at brush (risk in commutation failure)

Which is more accurate stepper or servo?

To summarize, stepper motors are good solutions for applications with low speed, low acceleration, and low accuracy requirements. Stepper motors also tend to be compact and inexpensive. ... Servo motors are a better choice for systems requiring high speed, high acceleration, and high accuracy.
