Snuffing Steam System: One of the methods is the elimination of required air for combustion process. In the emergency situation the steam is injected to the heater convection zone. There are lots of steam nozzles in different location which will start to spray the steam and flame out the heater burners.

What is snuffing steam used for?

Snuffing steam is STEAM; it is not water, CO2, or any liquid. Most likely, it comes from a boiler or a waste heat steam generator. It is used to "snuff" or put out an unwanted fire, and it does this by excluding air from the area where the potential fuel is located. (To some degree, it will also carry away heat.)

What is bridge wall temperature?

The Bridge wall temperature with conventional burners is estimated as 1,560°F as compared to 1,620°F with Ultra Low NOx burners.

What are shock tubes in a heater?

The first two rows of convection tubes that the flue gas passes over are called the “shock tubes” or “shield rows.” As these rows are closest to the radiant section, and likely exposed to radiant energy, they are bare.

How does a fired heater work?

Fired heaters rely on the flow of process fluids through the tubes to keep tube and firebox temperature down. If the temperature of the process fluid leaving the heater falls the control system calls for more fuel to be fed to the burners.

Inhaling Steam Does This To Your Body

What is the purpose of a shock tube?

The shock tube is an instrument used to replicate and direct blast waves at a sensor or a model in order to simulate actual explosions and their effects, usually on a smaller scale.

What is Arch in fired heater?

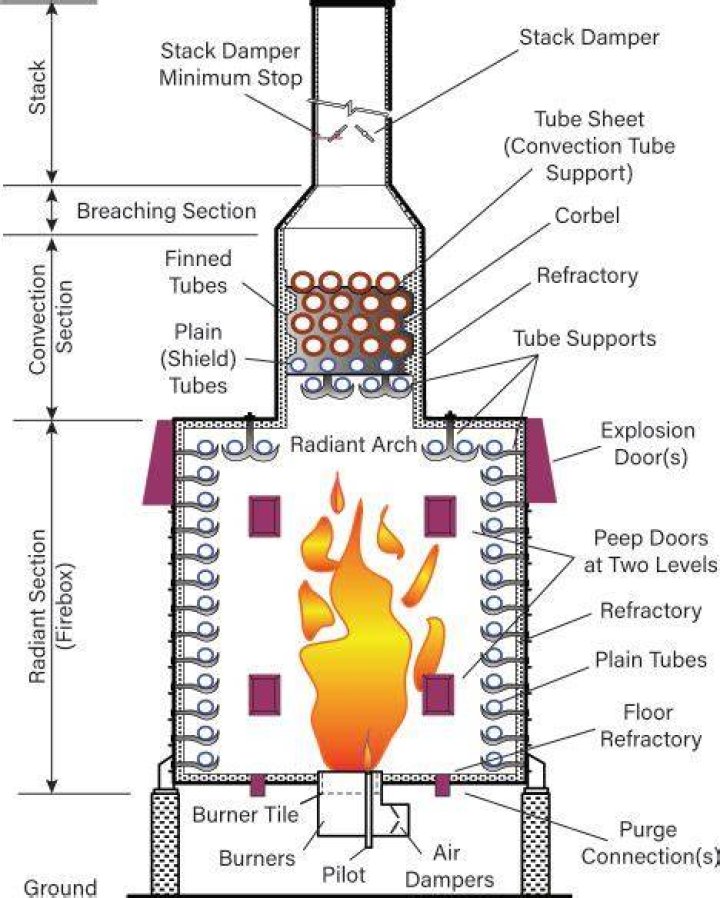

arch – flat or sloped portion of the heater radiant section opposite the floor. convection section – portion of the heater in which the heat is transferred to the tubes primarily by. convection. crossover – inter-connecting piping between any two heater-coil sections.
