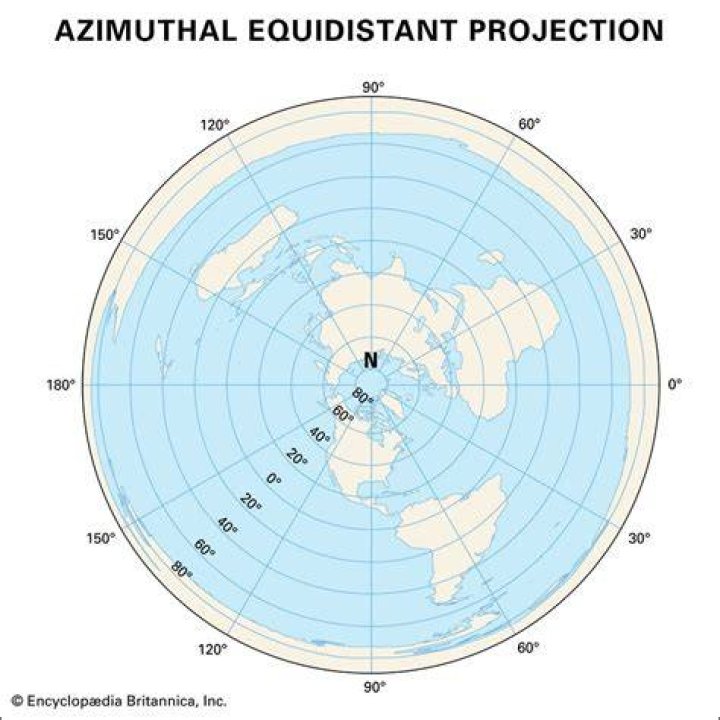

The azimuthal equidistant projection is an azimuthal map projection. It has the useful properties that all points on the map are at proportionally correct distances from the center point, and that all points on the map are at the correct azimuth (direction) from the center point.

What is a azimuthal equidistant projection used for?

noun Cartography. a projection in which the shortest distance between any point and a central point is a straight line, such a line representing a great circle through the central point.

What does a azimuthal projection show?

The azimuthal projection plots the surface of Earth using a flat plane. Imagine light rays radiating from a source following straight lines. Those light rays intercept the globe onto a plane at various angles. ... Some of the common perspective azimuthal projections include gnomonic, stereographic and orthographic.

What is an example of azimuthal projection?

Azimuthal projections result from projecting a spherical surface onto a plane. When the plane is tangent to the sphere contact is at a single point on the surface of the Earth. Examples are: Azimuthal Equidistant, Lambert Azimuthal Equal Area, Orthographic, and Stereographic (often used for Polar regions).

What are the disadvantages of azimuthal projection?

• It applies well when looking from a polar perspective only.
• A perspective azimuthal projection cannot plot out the entire Earth.
• Distortions increase as the distance expands on the map.
• It creates an awkward perspective when used for centering purposes.

Map Projections Part 3: Azimuthal Projections

What is another name for an azimuthal projection?

another term for zenithal projection.

What is a Robinson map projection best used for?

The Robinson projection is unique. Its primary purpose is to create visually appealing maps of the entire world. It is a compromise projection; it does not eliminate any type of distortion, but it keeps the levels of all types of distortion relatively low over most of the map.

Which map projection is the most accurate?

AuthaGraph. This is hands-down the most accurate map projection in existence. In fact, AuthaGraph World Map is so proportionally perfect, it magically folds it into a three-dimensional globe. Japanese architect Hajime Narukawa invented this projection in 1999 by equally dividing a spherical surface into 96 triangles.

What are the advantages of azimuthal projection?

It allows for orthodromic navigation. The azimuthal projection provides navigators with an opportunity to find the minimum distance from one point to another. Although land-based calculations are available with close-range maps, it is particularly useful for long-distance travel from the sea or the air.

What information can equidistant projections provide?

Maps that preserve scale

The Two-Point Equidistant projection preserves true scale from two specified points on the projection to all other points on the map. This projection could be used to determine the distance of a ship at sea from the start and end of a voyage.

What is the polar projection used for?

mapmaking. The polar projection is an azimuthal projection drawn to show Arctic and Antarctic areas. It is based on a plane perpendicular to the Earth's axis in contact with the North or South Pole.

What are the three main types of map projections?

This group of map projections can be classified into three types: Gnomonic projection, Stereographic projection and Orthographic projection.

What are the advantages and disadvantages of Gnomonic projection?

Advantages- The latitude and longitude appear as a grid which makes easy to locate positions with a ruler, it is very accurate at the equator. Disadvantages- Distances between regions and their areas are distorted at the poles. What is a gnomonic projection?

What are the disadvantages of polar projection?

Disadvantages: Peters's chosen projection suffers extreme distortion in the polar regions, as any cylindrical projection must, and its distortion along the equator is considerable.

What are the disadvantages of the Robinson projection?

Advantage: The Robinson map projection shows most distances, sizes and shapes accurately. Disadvantage: The Robinson map does have some distortion around the poles and edges.

What is wrong with the Peters projection?

Despite these benefits, the Gall-Peters projection has its flaws. It doesn't enlarge areas as much as the Mercator projection, but certain places appear stretched, horizontally near the poles and vertically near the Equator.

What are the 5 map projections?

• Mercator. This projection was developed by Gerardus Mercator back in 1569 for navigational purposes. ...
• Robinson. This map is known as a 'compromise', it shows neither the shape or land mass of countries correct. ...
• Dymaxion Map. ...
• Gall-Peters. ...
• Sinu-Mollweide. ...
• Goode's Homolosine. ...
• AuthaGraph. ...
• Hobo-Dyer.

What four distortions are there in the Robinson projection?

There are four main types of distortion that come from map projections: distance, direction, shape and area.

What are the problems with distortion when using a Mercator projection?

Although the linear scale is equal in all directions around any point, thus preserving the angles and the shapes of small objects, the Mercator projection distorts the size of objects as the latitude increases from the equator to the poles, where the scale becomes infinite.

Why would a town planner use a map at the 1 24000?

Why would a town planner use a map at the 1:24,000 scale rather than a map at the 1:250,000 scale? The map at the 1:24,000 scale shows a much larger area. The map at the 1:24,000 scale is easily converted to non-metric measurements. ... The map at the 1:250,000 scale shows the town in too much detail.

Which is a particular case of azimuthal projection?

The Lambert azimuthal equal-area projection is a particular mapping from a sphere to a disk. It accurately represents area in all regions of the sphere, but it does not accurately represent angles.

How are Gnomonic projections made?

In a gnomonic projection, great circles are mapped to straight lines. The gnomonic projection represents the image formed by a spherical lens, and is sometimes known as the rectilinear projection. and the two-argument form of the inverse tangent function is best used for this computation.

Where is most distortion found on a azimuthal projection?

• have distortions increasing away from the central point.
• have very small distortions near the centre point (the 'touch point of the paper')
• compass direction is only correct from the centre point to another feature – not between other features.

What are the disadvantages of gnomonic projection?

Limitations. The gnomonic projection is limited by its perspective point and cannot project a line that is 90° or more from the center point. This means that the equatorial aspect cannot project the poles, and the polar aspects cannot project the equator.
