Dielectric strength is defined as the electrical strength of an insulting material. In a sufficiently strong electric field the insulating properties of an insulator breaks down allowing flow of charge. Dielectric strength is measured as the maximum voltage required to produce a dielectric breakdown through a material.

What has the greatest dielectric strength?

A perfect vacuum has the highest dielectric strength, rated at 1×10¹² MV/m. A perfect vacuum contains no material to breakdown and is, therefore, the perfect electrical insulator.

How do you find dielectric strength?

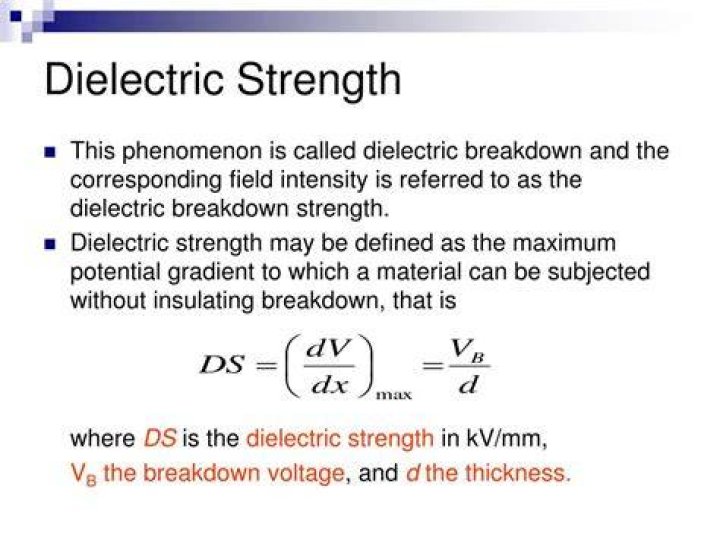

Dielectric strength is calculated by dividing the breakdown voltage by the thickness of the sample. The data is expressed in Volts/mil. The location of the failure is also recorded. A higher dielectric strength represents a better quality of insulator.

Which mineral has good dielectric strength?

Due to its excellent di-electric strength, low power loss factor, insulating properties and resistance to high voltage, mica is one of the most indispensable minerals used in electric and electronic industries...

What is the other name of dielectric strength?

While the dielectric strength characterises the material's insulating quality, the dielectric constant is a dimensionless mathematical ratio of the material permittivity to the permittivity of vacuum, which gives it the alternative name “relative permittivity”.

What is Dielectric Strength - Dielectric strength of Insulators- Material Properties

What is meant by dielectric?

Dielectric, insulating material or a very poor conductor of electric current. When dielectrics are placed in an electric field, practically no current flows in them because, unlike metals, they have no loosely bound, or free, electrons that may drift through the material. Instead, electric polarization occurs.

What is meant by dielectric breakdown?

Dielectric breakdown is the failure of an insulating material to prevent the flow of current under an applied electrical stress. The breakdown voltage is the voltage at which the failure occurs, and the material is no longer electrically insulating.

What is the best dielectric?

In practice, most dielectric materials are solid. Examples include porcelain (ceramic), mica, glass, plastics, and the oxides of various metals. Some liquids and gases can serve as good dielectric materials. Dry air is an excellent dielectric, and is used in variable capacitors and some types of transmission lines.

Why dielectric strength of vacuum is infinite?

Any amount of electric field we can apply for vacuum, the dielectric medium will never breakdown. it behaves as an insulator in a perfect manner therefore dielectric strength is infinite. in an absolute vacuum, there is nothing to ionize.

Which material has highest dielectric constant?

The highest dielectric constant is Calcium Copper Titanate.

Is rubber a dielectric material?

A dielectric is a non-conducting material – also called an insulator – such as rubber, wood, or glass. ... The dielectric consists of polarizable molecules that, when put in the electric field between isolated capacitor plates, are caused to have a charge separation as shown.

What are the factors affecting dielectric strength?

Dielectric strength relies on many factors such as crystalline structure, imperfections and impurities found in the insulator material, number of electrons, and external factors such as the shape of the electrodes used to shed the electrical voltage, nature of the external surface and the test conditions which include ...

What is the difference between dielectric strength and breakdown voltage?

The difference is important, since the breakdown voltage will be larger for thicker materials and smaller for thinner materials, but the dielectric strength will (theo- retically) remain unchanged. Dielectric strength is thus more like a material property, and breakdown voltage is more like a system property.

What makes a good dielectric?

All dielectric materials are insulators, but a good dielectric is one which is easily polarized. The amount of polarization which occurs when a certain voltage is applied to an object influences the amount of electrical energy that is stored in the electric field.

Which is the having higher breakdown strength?

Insulator breakdown strengths are typically 106 to 109 V/m at room temperature, varying considerably with test method. High vacuum has the highest breakdown strength followed by thin homogeneous solids and then liquids.

Why is K infinity?

The dielectric constant of a conductor (metal) is infinity in the sense that when a metal is placed in between two parallel plates in a capacitor. ... Hence, the derived dielectric constant (K) of the metal, is (E/Er = E/0) which is infinity. This is why the dielectric constant is infinity.

Why dielectric constant for a metal is infinite?

Permittivity is ability of a material to resist the formation of electric field inside it and for metals electric field does not exist inside the conductor. Therefore, permittivity of metal is infinitely larger than the permittivity of free space hence the dielectric constant is infinite.

Can metal be used as dielectric?

A metal can transmit the electrons and the force so it is not a dielectric to the electrons.

Why is it called dielectric?

Dielectrics are materials that don't allow current to flow. They are more often called insulators because they are the exact opposite of conductors. ... This process is called dielectric breakdown because the dielectric transitions from being an insulator to a conductor.

What is dielectric effect?

The term dielectric effect refers to the interaction of matter with the E component of an electromagnetic field. Abnormal bright and dark areas due to B1 field inhomogeneity are frequently noted at very high fields (3T and above).

Which is not dielectric material?

Answer:The dielectric is a material through which no electric current passes. Here the given materials-plastic, mica and porcelain are all the dielectric because current can not pass through them.

Why does dielectric breakdown occur?

Electrical breakdown or dielectric breakdown is a process that occurs when an electrical insulating material, subjected to a high enough voltage, suddenly becomes an electrical conductor and electric current flows through it.

Is lightning a dielectric breakdown?

Dielectric breakdown is typically accompanied by “arcing,” which is a sudden flow of current associated with the breakdown. A well known example of this phenomenon is lightning, which occurs when charge is exchanged between sky and ground when air (a dielectric) exhibits breakdown.

What is the permanent breakdown?

When breakdown occurs, solids get permanently damaged while gases fully and liquids partly recover their dielectric strength after the applied electric field removed. The mechanism of breakdown is a complex phenomenon in the case of. solids, and varies depending on the time of application of voltage as shown in Fig. 4.
