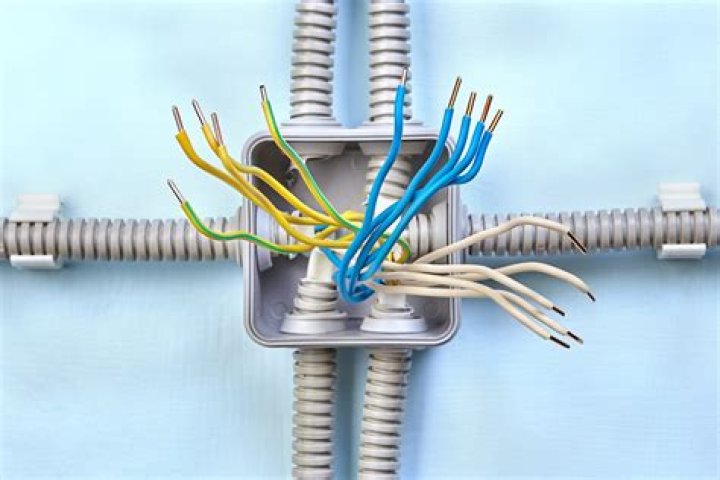

Electrical splices can never be left on their own in a wall or ceiling cavity. Instead, all splices must be contained within an approved junction box or fixture electrical box.

Can you splice wires without a junction box?

Short answer: NO. Long answer: All splices must be in a junction box, and the junction box must be accessible.

Do wire junctions have to be in a box?

Electrical codes generally require that all electrical devices, and the wiring connections to those devices, must be enclosed in an approved electrical box. Often known as a junction box, this metal or plastic box includes a cover to protect the wiring within and protect you from the wiring.

Can you splice Romex without junction box?

Subject: Re: Splicing Romex? 334.40 Switch, outlet, and tap devices of insulating material shall be permitted to be used without boxes in exposed cable wiring and for rewiring in existing buildings where the cable is concealed and fished.

Do low voltage splices need to be in a box?

2 Answers. It is not required, but it can be a good idea. Personally, I would prefer them to be in conduit (e.g. ENT/smurf tube) with splices in junction boxes. Just like with electrical wires, it will protect them from damage while providing accessibility for splices.

Tutorial Time: Proper Wire Splicing

Is it OK to splice thermostat wire?

3 Answers. A butt splice connector, or twist-on wire connector would be fine. Just make sure you use connectors that are designed for the size, and number of wires being connected. Technically, you should probably either pull all new wiring, so that it's continuous from HVAC to thermostat.

Is it OK to splice landscape wire?

You can splice low voltage landscape lighting wire. ... For many people, this is fine, but if your yard is larger than the manufacturer assumes or you have creative ideas for where to place your light features, those lengths can be insufficient, and you may need to splice low-voltage landscape-lighting wire.

Can you hide a junction box behind drywall?

A junction box, also known as a splice or switch box, is an electrical enclosure inside your home that contains wiring. Electrical wires run behind the walls and through the ceiling of your home, meeting at junction boxes. It is a safety hazard to completely bury a junction box in a wall.

How many wires can you splice together?

The limit by code is 12 outlets per circuit. Choose the proper wing nut. The blue has a minimum of 3 #12 wires. Doesn'T say what the max is but 5 or 6 would be no problem.

Can a junction box be in a wall?

Junction boxes must be installed where they are always accessible; never install a junction box in a concealed wall or ceiling space where the box cannot be accessed in the future. Junction boxes also must be covered with solid covers with no holes.

How many wires are allowed in a junction box?

Choose the Right Junction Box

For example, the smallest 2-by-4-by-1-1/2-inch-deep box can comfortably splice only two cables (four or five conducting wires), while the largest 4-by-4-by-2-1/8-inch-deep boxes can handle as many as four to six cables (up to 18 individual conducting wires).

What's the point of a junction box?

What are Junction Boxes and What Are They Used For? A junction box is an enclosure that protects a connection (the junction) of two or more wires carrying electrical current. This level of protection is needed to prevent fires and to maintain solid, reliable connections that stay tight over many years.

Do you need a junction box for a ceiling light?

If you're wondering how you install a light fixture without an electrical box, the short answer is that you don't. ... You can't install a light fixture without a junction box, but the fact that there's no box at the spot where you want to install the light doesn't mean you can't install the light.

Can you splice wires in a wall?

Electrical splices can never be left on their own in a wall or ceiling cavity. Instead, all splices must be contained within an approved junction box or fixture electrical box. ... The old, informal method of splicing wires together with electrical tape should never be used.

Can you splice three wires together?

Splicing three or more wires together

The pigtail type of splice is best when joining three or more wires. The thing to guard against when more than two wires are involved in the twist is the tendency for one or more of the wires to remain fairly straight while the others are wrapped around it.

Can you splice 10 3 wire together?

Using a large-gauge self-sealing UF splice kit, 10/3 cable can be spliced and waterproofed quickly and easily. Large wires positioned outdoors or underground must be spliced with a waterproof connector.

How many #12 wires can you put in a blue wire nut?

These connectors are fairly large and the specifications state they can handle a minimum of three 12 gauge wires and a maximum of one 6 gauge wires or two 8 gauge wires.

Can you use a junction box to extend wiring?

You can definitely use a junction box to extend your wiring. To do this, start by turning off the power. Then inspect the place and cut the required openings. Next, position the wires and adjust the box to pass the wires through.

Why are hidden junction boxes bad?

A safety-related problem with hidden junction boxes is that they can make it impossible to evaluate and correct dangerous conditions that might arise in future. If e.g. a home gets hit by a high-voltage surge, it may be necessary to inspect all of the junction boxes for signs of damage.

When can you cover a junction box with drywall?

As long as there are no wires inside the box, you can cover it with drywall. If the box is still acting as a junction box, however, and wires are joined inside it, the electrical code mandates a removable cover. Covers come in plastic or metal, and you attach them with machine screws.

Can you plaster over a junction box?

You CAN NOT plaster over or cover any junction box that is active. Junction boxes need to be readily accessible. If the box is disconnected, remove it, and then patch the hole.

How long can you run landscape wire?

Lighting Tip: You can run 12-gauge about 100 feet without voltage drop issues as long as the total wattage of the fixtures on the wire is 100 Watts or less. Also check that your wire and connectors are listed for direct burial which helps prevent corrosion and other weather-related problems over time.

Can you use two different gauge wires together?

It most be noted that while it is possible to splice different types of Romex wire—12/2 to 12/3, for instance—you should never splice together wires of a different gauge. ... Overloading a wire with more than its intended amperage could cause it to overheat, melt, and possibly catch fire.

Can you splice low voltage cable?

You can splice low voltage wires with solder and electrical tape or with various connectors or splicing kits. ... Shrink tubing gives a neater and more long-lasting result than electrical tape. Low voltage, underground wiring requires special treatment as does high current wiring.

How do I move my thermostat without rewiring?

To move a thermostat without rewiring, remove the interface from the panel and disconnect the wires. Then, drill a new hole where you want to move it. Run the wires to the new hole with a wire fishing tool, then reconnect and mount the interface.
