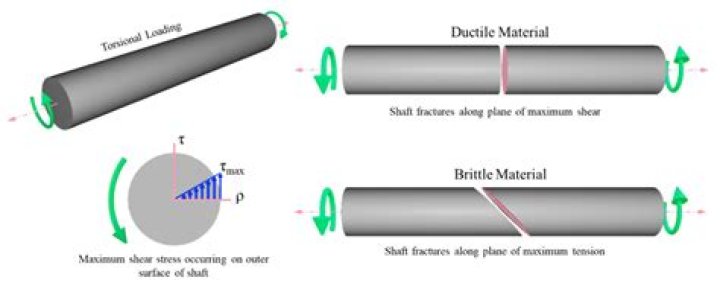

Since, ductile materials are weak in shear. Hence ductile materials failure occurs due to principle shear stress. In torsion test maximum shear stress is in the direction perpendicular to longitudinal axis. Hence, ductile failure plane is torsion will be perpendicular to longitudinal axis.

Is shear failure ductile or brittle?

At intermediate compressive confining stress, brittle behaviour is observed and shear fractures form when the shear failure surface is reached (B and C). With increasing confinement, the behaviour becomes ductile and deformation becomes more diffused (above C).

Is shear failure ductile?

In a ductile failure, there are characteristic ductile shear surfaces angled at 45° to the applied load (Figure 8.3). These 45° planes correspond to the planes of maximum shear stress in a member under load. They are also sometimes known as 'shear lips' (Figure 8.1).

How do ductile materials fail?

All Answers (3) By definition, ductile materials are those that undergo significant plastic deformation prior to fracture. ... Brittle materials do not undergo significant plastic deformation. They thus fail by breaking of the bonds between atoms, which usually requires a tensile stress along the bond.

Do brittle materials fail in shear?

The failure of brittle materials under compressive shear loading is described mainly on the basis of experimental investigations. The failure is accompanied by the formation of a combined fracture of a curvilinear or broken line shape, developing along the trajectories of the principal planes.

How and When Metals Fail

Why does brittle material Fail at 45 degrees?

[...] a brittle material will fail when the maximum tensile stress, σ1, in the material reaches a value that is equal to the ultimate normal stress the material can sustain […] So, under pure shear it fails in tension at a 45° angle.

Is steel weak in shear?

shear (sliding along a line or plane).

Concrete is strong against forces or compression, but weak against tension and shear forces. Steel, on the other hand, is strong against all three types of stress.

Why is ductile failure preferred?

This often results in a stable and predictable mode of fracture in which crack growth can only occur under an increasing applied load; when the load is reduced the crack stops growing. As a result, ductile fracture is the preferred failure mode for damage-tolerant materials.

Why is ductile material weak in shear?

Since, ductile materials are weak in shear. Hence ductile materials failure occurs due to principle shear stress. In torsion test maximum shear stress is in the direction perpendicular to longitudinal axis. Hence, ductile failure plane is torsion will be perpendicular to longitudinal axis.

How do you find ductile failure?

1. There is considerable gross permanent or plastic deformation in the region of ductile fracture. ...
2. The surface of a ductile fracture is not necessarily related to the direction of the principal tensile stress, as it is in a brittle fracture.

What is shear failure?

Shear failure can be defined as a failure that takes place due to insufficiency of shear resistance available between the materials. Shear failure can be easily determined by checking out the excessive deflection or development of cracks, which gives an advance warning about the probable occurrence of shear failure.

What is ductile material?

Ductility is a mechanical property commonly described as a material's amenability to drawing (e.g. into wire). In materials science, ductility is defined by the degree to which a material can sustain plastic deformation under tensile stress before failure.

What is the first stage on a ductile fracture?

The basic steps in ductile fracture are void formation, void coalescence (also known as crack formation), crack propagation, and failure, often resulting in a cup-and-cone shaped failure surface. Voids typically coalesce around precipitates, secondary phases, inclusions, and at grain boundaries in the material.

Can a ductile material failure in a brittle manner?

Materials that do not fail in a ductile manner will fail in a brittle manner. Brittle fractures are characterised as having little or no plastic deformation prior to failure. Materials that usually fracture in a brittle manner are glasses, ceramics, and some polymers and metals.

What are the three stages of ductile fracture?

The physics of ductile fracture exhibit the following stages: formation of a free surface at an inclusion, or second-phase particle, by either interface decohesion or particle cracking, growth of the void around the particle by means of plastic strain and hydrostatic stress, and coalescence of the growing void with ...

What is the difference between ductile and brittle material in failure under tension?

The ductile materials are Steel, Aluminum, copper etc. Brittle materials break without significant plastic deformation under tensile stress. Also called sudden failure. Brittle material absorbs little energy prior to rapture.

Is ductile or brittle stronger?

Brittle materials (ceramics, concrete, untempered steel) are stronger (higher tensile strength -yield point and u.t.s) and harder than ductile, as they do not undergo significant plastic elongation / deformation and fail by breaking of the bonds between atoms, which requires a tensile stress along the bond.

Is rubber ductile or brittle?

Yes, it's the ductility. So now you should notice important aspect over here, the elasticity of the rubber band is good but the ductility is bad, so it is not necessary that the material which is elastic is always ductile.

Which theory is suitable for ductile materials?

Maximum Shear Stress Theory (Tresca theory), Total strain energy theory, Maximum Distortion Energy Theory (von Mises) useful for a ductile material.

What is difference between ductile and brittle material?

Materials can be named as ductile materials or brittle materials based on their response to an applied stress on them. The main difference between ductile and brittle materials is that ductile materials are able to be drawn out into thin wires whereas brittle materials are hard but liable to break easily.

Is fatigue failure ductile or brittle?

Fatigue failure is brittle-like (relatively little plastic deformation) - even in normally ductile materials. Thus sudden and catastrophic! Applied stresses causing fatigue may be axial (tension or compression), flextural (bending) or torsional (twisting).

Are metals brittle?

Metals. Some metals exhibit brittle characteristics due to their slip systems. ... Conversely, with fewer slip systems, less plastic deformation can occur, and the metal will be more brittle. For example, HCP (hexagonal close packed) metals have few active slip systems, and are typically brittle.

What material is weak in tension?

Concrete is a brittle material and can crack or break with little warning. Concrete is very weak when a tension force is applied to it and therefore has a very low tensile strength.

How is steel shear strength calculated?

Ultimate shear strength is commonly estimated to be 0.6*UTS. The 0.57*TYS is probably taken from the von Mises/distortion energy/octahedral shear stress criterion, and it should be stated as shear yield strength = 0.577*tensile yield strength.
