UART is the abbreviation of Universal Asynchronous Receiver Transmitter, the name of the chip that enables the computer to communicate via a serial line serial line COM (communication port) is the original, yet still common, name of the serial port interface on PC-compatible computers. It can refer not only to physical ports, but also to emulated ports, such as ports created by Bluetooth or USB adapters. › wiki › COM_(hardware_interface)

COM (hardware interface) - Wikipedia

Is UART serial?

By definition, UART is a hardware communication protocol that uses asynchronous serial communication with configurable speed. Asynchronous means there is no clock signal to synchronize the output bits from the transmitting device going to the receiving end.

Is RS232 the same as UART?

No, UART and RS-232 are not the same. UART is responsible for sending and receiving a sequence of bits. At the output of a UART these bits are usually represented by logic level voltages. These bits can become RS-232, RS-422, RS-485, or perhaps some proprietary spec.

Does UART use RS232?

UART is a hardware transceiver that implements some signalling protocol. A UART can implement RS232, but it can also implement other serial protocols, such as RS485, TTL which define different voltage levels etc. from those defined by RS232.

Is Arduino serial UART?

All Arduino boards have at least one serial port (also known as a UART or USART): Serial. It communicates on digital pins 0 (RX) and 1 (TX) as well as with the computer via USB. Thus, if you use these functions, you cannot also use pins 0 and 1 for digital input or output.

PROTOCOLS: UART - I2C - SPI - Serial communications #001

Can Arduino use UART?

All Arduino boards have at least one serial port (also known as a UART or USART), and some have several. On Uno, Nano, Mini, and Mega, pins 0 and 1 are used for communication with the computer. ... You can use the Arduino environment's built-in serial monitor to communicate with an Arduino board.

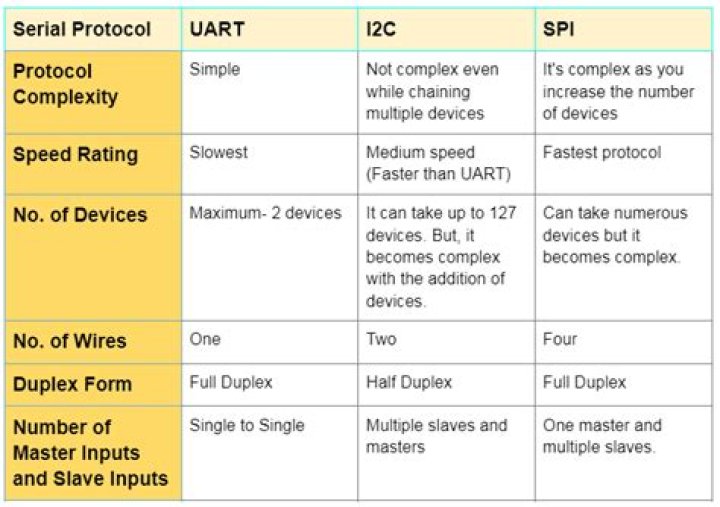

Which is faster UART or I2C?

I2C is also generally faster than UART, and can reach speed of up to 3.4 MHz. ... Some drawbacks are that UART doesn't offer multiple master/slave support, which can limit how many devices are used on the bus. Additionally, each UART baud rate should be in 10% of each other or else data can be corrupted.

Which is the most commonly used UART?

Which is the most commonly used UART? Explanation: The Intel 8253, 8254 and 8259 are timers whereas Intel 8250 is a UART which is commonly used.

Is SPI a UART?

One of the biggest differences is that UART is a type of hardware while SPI is a protocol. ... However, UART is an actual piece of hardware (a microchip) while SPI is a protocol or specification for communication.

Is USB a UART?

UART is more of an external interface, i.e. between whole systems or devices as opposed to individual chips. Now USB is by a wide margin the fastest of the three (by an order of magnitude) but it is also far more complex, with handshaking, device detection, auto speed negotiation etc.

What is the purpose of UART?

UART stands for Universal Asynchronous Receiver/Transmitter. It's not a communication protocol like SPI and I2C, but a physical circuit in a microcontroller, or a stand-alone IC. A UART's main purpose is to transmit and receive serial data. In UART communication, two UARTs communicate directly with each other.

What is the maximum speed of UART?

UART interfaces have a maximum data rate of around 5 Mbps. There is also some protocol overhead in the form of start, stop, and parity bits. The data rate of a UART interface is similar to that of an I²C interface.

Is UART a TTL?

UARTs transmit one bit at a time at a specified data rate (i.e. 9600bps, 115200bps, etc.). This method of serial communication is sometimes referred to as TTL serial (transistor-transistor logic).

Is Bluetooth a UART?

The Bluetooth UART service emulates the behaviour of a physical UART system and allows the exchange of a maximum of 20 bytes of data at a time in either direction. ...

Is UART full duplex?

The UART component can be configured for Full Duplex, Half Duplex, RX only or TX only versions. All versions provide the same basic functionality differing only in the amount of resources utilized. To assist with processing of the UART receive and transmit data, independent size configurable buffers are provided.

Why UART is called universal?

UART is most often installed in a piece of hardware, embedded in an IC (integrated circuit), that translates communicated data between serial and parallel forms. ... The “Universal” portion of the name refers to the configurability of both the data format and the speeds at which it is transmitted/received.

Is UART high speed?

TI claims that early models can run up to 1 Mbit/s, and later models in this series can run up to 3 Mbit/s. 128-byte buffers. This UART can handle a maximum standard serial port speed of 921.6 kbit/s if the maximum interrupt latency is 1 millisecond. This UART was introduced by Exar Corporation.

Is SPI a RS232?

Mini Circuits' RS232/USB-SPI is a compact digital convertor allowing two way communication with SPI devices using either a USB or RS232 port. For SPI communication standard TTL levels are used and the model can handle all voltage levels defined in the RS232 protocol. Power to the Converter is supplied via the USB port.

Is SPI synchronous or asynchronous?

SPI is a synchronous communication protocol. There are also asynchronous methods that don't use a clock signal. For example, in UART communication, both sides are set to a pre-configured baud rate that dictates the speed and timing of data transmission.

What is baud rate 9600?

The baud rate is the rate at which information is transferred in a communication channel. ... In the serial port context, "9600 baud" means that the serial port is capable of transferring a maximum of 9600 bits per second. At baud rates above 76,800, the cable length will need to be reduced.

What does UART 1 point mean?

Explanation: The UART or universal asynchronous receiver transmitter is used for the data transmission at a predefined speed or baud rate.

Who invented UART?

UART stands for a “Universal Asynchronous Receiver/Transmitter” and was developed by Gordon Bell at Digital Equipment Corporation in the 1960's.

What is another name for I2C Mcq?

Explanation: The I2C is known as inter-IC, which is developed by Philips for interfacing with the peripheral devices.

Is I2C faster than serial?

So based on this information I've concluded that the fastest common bit rate used for the serial communication is 115200 bits/s. This seems to be significantly lesser than the bit rates for I2C, which appear to start at 100 kbit/s which equates to 100000 bits/s.

What is UART in IOT?

A universal asynchronous receiver/transmitter (UART) is a hardware device with circuitry that facilitates communication between parallel and serial interfaces. These interfaces transmit data, as a single stream of bits, between two systems.
