Fortunately, though, Faraday noticed that when a dielectric is placed between the plates of a parallel plate capacitor, the capacitance increases by a factor . He called this factor the “dielectric constant.” With it, we can write: ! and Ewith dielectric = Ew/0 dielectric " where is greater than or equal to 1.

Who discovered dielectric constant?

Peter Debye Nobel laureate discovered dielectric constant.

What is a dielectric constant?

Dielectric constant (ϵr) is defined as the ratio of the electric permeability of the material to the electric permeability of free space (i.e., vacuum) and its value can derived from a simplified capacitor model.

How is the dielectric constant derived?

If C is the value of the capacitance of a capacitor filled with a given dielectric and C₀ is the capacitance of an identical capacitor in a vacuum, the dielectric constant, symbolized by the Greek letter kappa, κ, is simply expressed as κ = C/C₀.

What is the purpose of the dielectric constant?

The dielectric constant of a material determines the amount of energy that a capacitor can store when voltage is applied. A dielectric material becomes polarized when it is exposed to an electric field. When polarization occurs, the effective electric field is reduced.

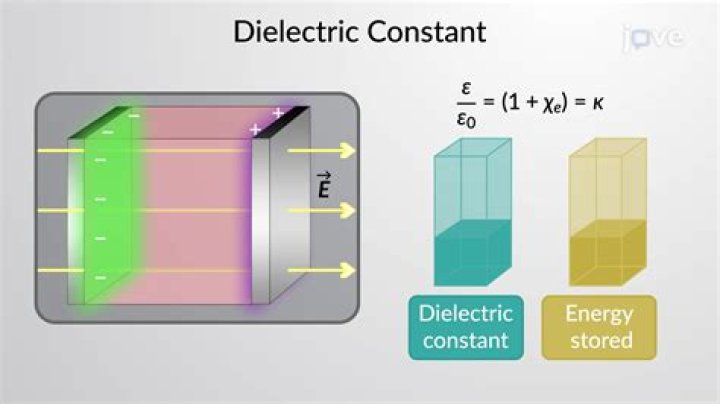

Dielectrics and Dielectric Constant

Which has highest dielectric constant value?

The highest dielectric constant is Calcium Copper Titanate.

What is meant by dielectric?

Dielectric, insulating material or a very poor conductor of electric current. When dielectrics are placed in an electric field, practically no current flows in them because, unlike metals, they have no loosely bound, or free, electrons that may drift through the material. Instead, electric polarization occurs.

What happen if dielectric constant is less than 1?

If a material had a relative permittivity less than 1 the charge stored would be less than with air/vacuum. the polarisation would have to be reversed so that the dielectric accumulated surface charge of the same polarity as the adjacent plate. This separation of charge it isn't going to happen naturally in a material.

What is dielectric loss factor?

The dielectric loss factor is a measure of the energy absorbed in the medium as an electromagnetic wave passes through that medium. In the ideal case, the losses are zero and the dielectric loss factor is zero.

How does temperature affect dielectric constant?

The dielectric constant is inversely proportional to temperature. When the temperature increases the dielectric constant decreases.

What is the unit of dielectric strength?

Dielectric Strength is a measure of the electrical strength of a material as an insulator. Dielectric strength is defined as the maximum voltage required to produce a dielectric breakdown through the material and is expressed as Volts per unit thickness.

What is a low dielectric constant?

In semiconductor manufacturing, a low-κ is a material with a small relative dielectric constant (κ, kappa) relative to silicon dioxide. ... Replacing the silicon dioxide with a low-κ dielectric of the same thickness reduces parasitic capacitance, enabling faster switching speeds and lower heat dissipation.

Why is water a dielectric?

Water comes out to be dielectric because of the dielectric polarization (it's an electric dipole and is a highly polar molecule & even rotates - aligning itself in field direction) associated with it. The electric field induced by polarization overcomes the effect caused by applied electric field.

Why is it called dielectric?

Dielectrics are materials that don't allow current to flow. They are more often called insulators because they are the exact opposite of conductors. ... This process is called dielectric breakdown because the dielectric transitions from being an insulator to a conductor.

What is a dielectric example?

In practice, most dielectric materials are solid. Examples include porcelain (ceramic), mica, glass, plastics, and the oxides of various metals. ... Dry air is an excellent dielectric, and is used in variable capacitors and some types of transmission lines. Distilled water is a fair dielectric.

What is a dielectric Class 12?

Hint: Dielectric substances are the kind of substance which generates an additional induced electric field when it comes in the influence of some external magnetic field. The direction of this induced electric field is in the opposite direction of the direction of the external electric field.

What is the formula of dielectric loss?

The bigger energy dissipation in a dielectric, the bigger dielectric losses, angle δ and its tangent. In the most cases loss mechanisms in a capacitor are complex, and losses (by the unit of capacitor value) can be found by the formula: P = ω ε 0 ε t g δ E 2 .

What are the types of dielectric loss?

There are two main forms of loss that may dissipate energy within a dielectric. In conduction loss, a flow of charge through the material causes energy dissipation. Dielectric loss is the dissipation of energy through the movement of charges in an alternating electromagnetic field as polarisation switches direction.

Which medium has highest dielectric strength?

A perfect vacuum has the highest dielectric strength, rated at 1×10¹² MV/m. A perfect vacuum contains no material to breakdown and is, therefore, the perfect electrical insulator. In reality, a perfect vacuum is nearly impossible to achieve but a high vacuum is also a great insulator, rated at 30 MV/m.

Is water a good dielectric material?

An electrical insulator is a material that does not allow the flow of charge. ... By this definition liquid water is not an electrical insulator and hence liquid water is not a dielectric. The self-ionization of water is a process in which a small proportion of water molecules dissociate into positive and negative ions.

What is the dielectric constant of a metal?

The dielectric constant of metals is infinite. The dielectric constant of metal is infinite as the net electric field inside the metal is zero. The dielectric constant is defined as the ratio of the permittivity of a substance to the permittivity of free space.

Why does water have a high dielectric constant?

Water molecules are always associated with each other through as many as four hydrogen bonds and this ordering of the structure of water greatly resists the random thermal motions. Indeed it is this hydrogen bonding which is responsible for its large dielectric constant.

What are two types of dielectric?

There are two types of dielectrics – Non-polar dielectric and polar dielectric.

Why dielectric is used in capacitor?

A dielectric is used in between the two plates of the capacitor because it reduces this tendency much more than an air gap. ... This polarization reduces the electric field strength, this allows more charges to be deposited to the capacitor plates for the given voltage across the terminals.

What is dielectric effect?

The term dielectric effect refers to the interaction of matter with the E component of an electromagnetic field. Abnormal bright and dark areas due to B1 field inhomogeneity are frequently noted at very high fields (3T and above).
