When ductile fracture occurs in a material after plastic deformation, void nucleation, void growth, and void coalescence occur microscopically in the material (Dodd and Bai, 1987); the material deteriorates during plastic deformation due to voids.

In what matter ductile fracture occur?

In what matter ductile fracture occurs? Explanation: Ductile fracture occurs in trans granular manner while brittle fracture in catastrophically. Explanation: The planes along with which fracture takes place in metals is known as a cleavage plane. Slip and twin planes are in which slipping and twinning is preferred.

Why do metals undergo ductile fracture?

Ductile fracture in metals and metallic alloys often originates from the initiation, growth, and coalescence of microscopic voids during plastic deformation [1–6]. ... Once the voids nucleate, further plastic deformation enlarges the size of voids and distorts the shape, which is often called void growth [7].

How do you identify a ductile fracture?

1. There is considerable gross permanent or plastic deformation in the region of ductile fracture. ...
2. The surface of a ductile fracture is not necessarily related to the direction of the principal tensile stress, as it is in a brittle fracture.

What type of failure occurs in ductile and brittle material?

Corrosionpedia Explains Ductile Failure

Almost all engineering materials undergo only two types of failure/fracture modes: ductile and brittle fracture. Ductile materials exhibit massive amounts of plastic buckling or deformation in comparison to brittle materials.

Brittle vs. Ductile Failure

What is the first stage on a ductile fracture?

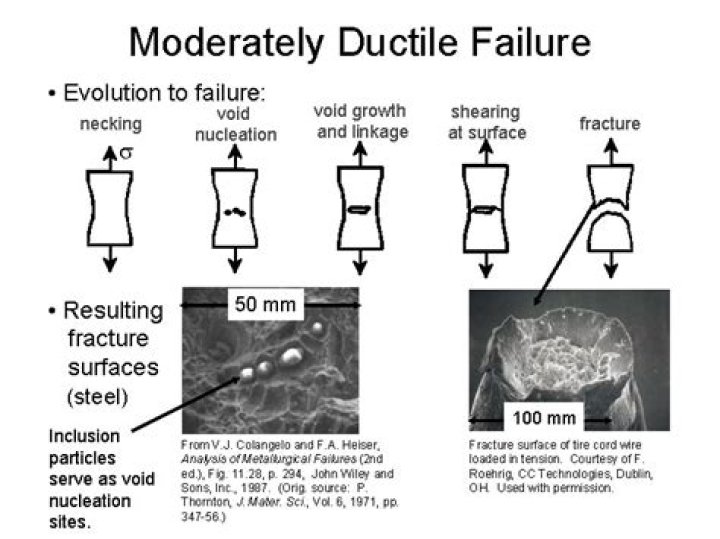

The basic steps in ductile fracture are void formation, void coalescence (also known as crack formation), crack propagation, and failure, often resulting in a cup-and-cone shaped failure surface. Voids typically coalesce around precipitates, secondary phases, inclusions, and at grain boundaries in the material.

What is failure pattern in ductile material?

8.2 Ductile failure. Ductile failure is also known as plastic collapse, general yielding or ductile overload, and is the failure mode that occurs when a material is simply loaded to beyond its ultimate tensile strength (see Chapter 4).

Why is ductile failure preferred?

This often results in a stable and predictable mode of fracture in which crack growth can only occur under an increasing applied load; when the load is reduced the crack stops growing. As a result, ductile fracture is the preferred failure mode for damage-tolerant materials.

What is difference between ductile and brittle material?

Materials can be named as ductile materials or brittle materials based on their response to an applied stress on them. The main difference between ductile and brittle materials is that ductile materials are able to be drawn out into thin wires whereas brittle materials are hard but liable to break easily.

Is rubber ductile or brittle?

Yes, it's the ductility. So now you should notice important aspect over here, the elasticity of the rubber band is good but the ductility is bad, so it is not necessary that the material which is elastic is always ductile.

Why do ductile materials fail at 45 degrees?

This is due to the reason that the plane of maximum shear stress in case of uniaxial tension is inclined at 45 degrees with the axis. Brittle materials do not undergo significant plastic deformation. They thus fail by breaking of the bonds between atoms, which usually requires a tensile stress along the bond.

How does ductile fracture happen?

A ductile fracture in metallic alloys and metals usually originates from the growth, initiation and coalescence of microscopic voids that occurs during plastic deformation. The void nucleation usually happens at the interfaces of second-phase particles.

What is ductile material?

Ductility is a mechanical property commonly described as a material's amenability to drawing (e.g. into wire). In materials science, ductility is defined by the degree to which a material can sustain plastic deformation under tensile stress before failure.

How does grain size affect brittle fracture?

A difference in grain size mainly lowers the resistance to ductile (ap) and brittle (T₅₀) fracture. ... A difference in grain size has the same negative effect on the ductile-brittle transition temperature (resistance to brittle fracture) after tempering at both low and high temperatures.

Which crystal structure fails in ductile mode?

Materials with BCC or HCP crystal structure can be expected to experience brittle fracture under normal conditions, whereas materials with FCC crystal structure are expected to experience ductile fracture.

What is ductile and brittle behavior?

Ductility increases with increased confining pressure and temperature, and is common in weathered rocks, heavily jointed rock masses and some weak rocks such as evaporites. Brittle-ductile transition. As the confining pressure is increased a rock specimen will tend to exhibit more ductile behavior.

What does a brittle fracture look like?

Brittle fractures are characterised as having little or no plastic deformation prior to failure. Materials that usually fracture in a brittle manner are glasses, ceramics, and some polymers and metals.

How does ductile material fail?

By definition, ductile materials are those that undergo significant plastic deformation prior to fracture. ... Brittle materials do not undergo significant plastic deformation. They thus fail by breaking of the bonds between atoms, which usually requires a tensile stress along the bond.

Are metals brittle?

Metals. Some metals exhibit brittle characteristics due to their slip systems. ... Conversely, with fewer slip systems, less plastic deformation can occur, and the metal will be more brittle. For example, HCP (hexagonal close packed) metals have few active slip systems, and are typically brittle.

Why steel is brittle?

Since metals bend by creating and moving dislocations, the near absence of dislocation motion causes brittleness. On the positive side, the difficulty of moving dislocations makes quasicrystals extremely hard. They strongly resist deformation. This…

What are the three stages of ductile fracture?

The physics of ductile fracture exhibit the following stages: formation of a free surface at an inclusion, or second-phase particle, by either interface decohesion or particle cracking, growth of the void around the particle by means of plastic strain and hydrostatic stress, and coalescence of the growing void with ...

Which steel is brittle?

In general, soft tough metals will be ductile. Harder, stronger metals tend to be more brittle. The relationship between strength and hardness is a good way to predict behavior. Mild steel (AISI 1020) is soft and ductile; bearing steel, on the other hand, is strong but very brittle.

How do you know if a fracture is strained?

The fracture strain can be measured experimentally directly on the fracture surface based on the reduction of the cross-sectional area.

How do you know if stress is fractured?

Fracture strength, also known as breaking strength, is the stress at which a specimen fails via fracture. This is usually determined for a given specimen by a tensile test, which charts the stress-strain curve. The final recorded point is the fracture strength.
