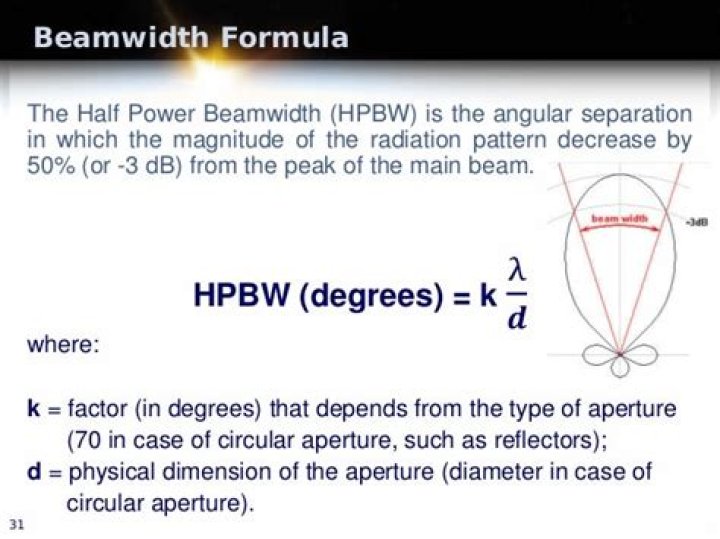

The Half Power Beamwidth (HPBW) is the angular separation in which the magnitude of the radiation pattern decrease by 50% (or -3 dB) from the peak of the main beam. From Figure 2, the pattern decreases to -3 dB at 77.7 and 102.3 degrees. Hence the HPBW is 102.3-77.7 = 24.6 degrees.

How is beamwidth calculated?

3 dB beamwidth is approximately equal to the angle from the peak of the power to the first null (see figure at right). 7. Parabolic Antenna Beamwidth: Where: BW = antenna beamwidth; 8 = wavelength; d = antenna diameter. at the half-power or -3 dB point of the main lobe unless otherwise specified.

What is half power beamwidth of an antenna?

In a radio antenna pattern, the half power beam width is the angle between the half-power (-3 dB) points of the main lobe, when referenced to the peak effective radiated power of the main lobe. See beam diameter. Beamwidth is usually but not always expressed in degrees and for the horizontal plane.

Why is beamwidth half power?

The half-power beamwidth tends to be closely related to the gain of the antenna. It is also important if antennas are to be used to cover neighbouring sectors, as this is the cross-over point. ... The first null beamwidth is useful in finding out how much antennas will interfere with each other.

How is BWFN calculated?

BWFN= 115/( (C/lambda)*sqrt(N*(S/lambda)) ), Beam width first nulls. Where C is circumference, which is normally chose to be close to one wavelength.

Example of HPBW- Half Power Beam Width & FNBW- First Null Beam Width in Antenna by Engineering Funda

Which type of antenna gives highest gain?

High gain antennas are typically the largest component of deep space probes, and the highest gain radio antennas are physically enormous structures, such as the Arecibo Observatory. The Deep Space Network uses 35 m dishes at about 1 cm wavelengths.

What is Hpbw and FNBW?

Beam width is the aperture angle from where most of the power is radiated. The two main considerations of this beam width are Half Power Beam Width (HPBW) and First Null Beam Width (FNBW).

What is 3 dB beamwidth?

The 3 dB, or half power, beamwidth of the antenna is defined as the angular width of the radiation pattern, including beam peak maximum, between points 3 dB down from maximum beam level (beam peak).

How do you calculate half power bandwidth?

BW≡ 2Δω is called the half-power bandwidth. (14.77) This may also be written as = ω₀/BW. Using values from Example 14.12, find the ω′_s at which the power is at half-maximum, and the half-power bandwidth 2Δω.

What is the difference between beamwidth and bandwidth?

The bandwidth of an antenna refers to the range of frequencies over which the antenna can operate correctly. The antenna's bandwidth is the number of Hz for which the antenna will exhibit an SWR less than 2:1. The bandwidth can also be described in terms of percentage of the center frequency of the band.

What is 3db bandwidth of antenna?

The half-power point or half-power bandwidth is the point at which the output power has dropped to half of its peak value; that is, at a level of approximately -3 dB. In filters, optical filters, electronic amplifiers, the half-power point is a commonly used definition for the cutoff frequency.

What is antenna bandwidth?

- Bandwidth The bandwidth of an antenna refers to the range of frequencies over which the antenna can operate correctly. The antenna's bandwidth is the number of Hz for which the antenna will exhibit an SWR less than 2:1. The bandwidth can also be described in terms of percentage of the center frequency of the band.

What are the antenna parameters?

Typical parameters of antennas are gain, bandwidth, radiation pattern, beamwidth, polarization, and impedance. The antenna pattern is the response of the antenna to a plane wave incident from a given direction or the relative power density of the wave transmitted by the antenna in a given direction.

What is difference between dB and dBi?

dB is antenna gain in decibels reference to how much times gainincrease there is with respect to 1(0dB) . dBi is antenna gain with respect to isotropic antenna. Since isotropic antenna has gain 1 ( 0 dB) thats why here dB and dBi are same. Gain of 3 dB means 2 times increase in gain.

What is horizontal and vertical beamwidth?

The horizontal plane (also called the azimuth) is like looking at the antenna pattern from the sky. The width of this angle is called the horizontal beamwidth. ... The height of this angle is called the vertical beamwidth.

What is meant by beamwidth?

A measure of the concentration of power in a radar beam. Ordinarily, beamwidth is defined as the angle within which the intensity is not less than one- half the intensity on the beam axis (the 3-dB beamwidth). ...

Is 3dB a half?

3dB is equivalent to 0.707 times the peak Voltage/Current value, also known as the half power point. Usually dB is a measure of power, in electrical work power is the square of current times load impedance or the square of voltage divided by load impedance.

How many dB is half power?

Hint: half power is -3 dB.

What is bandwidth formula?

Bandwidth is measured between the 0.707 current amplitude points. The 0.707 current points correspond to the half power points since P = I²R, (0.707)² = (0.5). Bandwidth, Δf is measured between the 70.7% amplitude points of series resonant circuit.

How do you calculate 3dB beamwidth in HFSS?

After you obtain the 2D Radiation Pattern, Right Click on the screen, then a menu will be displayed with "Markers" at the top, next you can find "Trace Characteristics". Trace Characteristics> Add. Add Trace Characteristics window opens. Put x value 3 for 3dB beamwidth in the table below.

What is electrical beamwidth?

The 'electrical beamwidth' really means theheight of the signal; it's usually measuredfrom horizontal. For example, a 4deg. heightwould be 2deg.

What are antenna losses?

Losses for single antennas can be minimized using high conductivity materials. It is less well understood that loss for array antennas is also influenced by mutual coupling between array elements and the beamformer weights applied to the signal from each element.

What is the unit of directivity?

Directivity is expressed in dB. The higher the directivity, the more concentrated or focussed is the beam radiated by an antenna. A higher directivity also means that the beam will travel further. An antenna that radiated equally well in all directions would be omni-directional and have a directivity of 1 (0 dB).

What is directivity and gain?

By definition, directivity is the ability of an antenna to focus the radiation to a particular direction, whereas, the gain is the ability of the antenna to convert the input power into radio waves in a particular direction.

What is the beam width for half wave dipole antenna?

What is the beam width for a half wave dipole antenna? Explanation: The beam width is measured between the points on the radiation curve that are 3 dB down from the maximum amplitude of the curve. The maximum amplitude of the pattern occurs at 0° and 180°. The 3-dB down points are 70.7 percent of the maximum.
