A pile driver is a device used to drive piles into soil to provide foundation support for buildings or other structures. The term is also used in reference to members of the construction crew that work with pile-driving rigs. One type of pile driver uses a weight placed between guides so that it can slide vertically.

How does a pile driver work?

Traditional pile driving machines work by using a weight placed above a pile that releases, slides down vertically and hits the pile, hammering it into the ground. The weight is raised mechanically and can be powered by either hydraulics, steam or diesel. When the weight reaches its highest point, it is released.

How long does it take to drive piles?

Piles may be completely driven in one operation or, if directed by the state, be allowed to set for 2 to 24 hours (or as indicated on the plans) before driving is resumed. Evaluate the procedure being followed for this project. Piles are either plumb (truly vertical) or battered per the plans.

Can pile driving cause damage?

Activities such as pile driving or soil compaction cause vibration which can result in damage to surrounding structures. ... Damage can also be incurred by the settlement of the soils supporting a new foundation not being uniform.

Can you drive concrete piles?

Concrete piles are generally installed with impact pile driving hammers. Pile tops are always protected during driving with cushioning material, usually sheets of plywood.

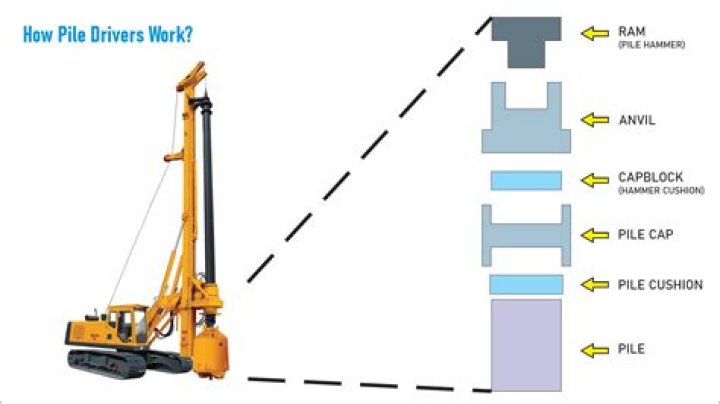

HOW PILE DRIVER WORKS

How deep should piles be driven?

Usual depths for concrete precast piles range from a few meters to around 30 m, but under special circumstances piles have been driven down to 150 m! Steel circular piles in offshore works can go much deeper.

How noisy is piling?

Generally the noise data we have, envisage to be around 107 dB(a) but could be more or less depending on the ground conditions when driving a pile.

What can I do if my Neighbours building work damaged my property?

Start by talking to your neighbour and asking them to check if their insurance will cover the damage. They will need to lodge a claim with their insurance provider. If you're submitting a claim to your neighbour's home insurance provider, you'll need to prove that the damage was, in fact, their fault.

How close can you pile to a building?

Normally you need to leave a minimum 750mm from face of obstruction to centreline of pile thus nearest internal basement wall face to an obstruction is 1200mm or so.

How do I become a pile driver?

To become a pile driver operator, you will need to have a high school diploma or GED certificate. Acquire an apprenticeship to learn how to operate large construction vehicles. Licensing and certification requirements vary by state, so research the qualifications in your state.

How long do pile foundations take?

How long will the work take? To install the piles and foundations on a typical house extension can take 2-3 days. Drop weight rigs can install 5-10 piles a day and top drive rigs can install 10-20 piles a day (depends on depth driven).

What does a pile Buck do?

PRIMARY FUNCTION: Pile Buck Position is a Skilled Craftsperson Knowledgeable and experienced in the installation of all sizes and Dimension piles, on or near the water, including Pipe pile, H pile and Sheet piles.

How much does a pile driver weigh?

A double-action hammer weighs from 5,000 to 14,000 pounds, and a single-action hammer weighs about 10,000 pounds. The blows of the double-action hammer are lighter, but more rapid than those of the single-action hammer.

How deep can pile foundations go?

What is the maximum depth? With the benefit of using pile joints, precast concrete piles can be driven to lengths longer than 30mx. Often concrete precast piles can be driven down to 30m, however, in special circumstances, such as offshore projects, piles can be driven down to a maximum of 150m.

How long before a boundary becomes legal?

In simple terms, the law means that if a neighbour of yours moves their fence by a few metres one year, and you do not complain or even mention it for a certain period of time, they could then legally claim to be the owners and occupiers of the land.

Can I sue my neighbor for water damage?

If the flow of water causes damage you may be able to sue for compensation and/or obtain a court order stopping the activity. If the flow is caused by a deliberate act of the neighbour, it may be a trespass.

Can scaffolding be put on Neighbours property?

A There is no general legal right allowing neighbours to put scaffolding on someone else's land. Generally, scaffolding put up without permission is a trespass. In fact, a trespass may occur even without any scaffolding being on the land itself.

Is Pile driving a noise?

Impact pile driving produces a loud, impulse sound that can propagate through the water and substrate. The underwater sound pressure levels caused by pile driving can be harmful to marine animals.

Is piling work Noisy?

In the past, steel pile installation was associated with high noise and vibration because piles were driven using high impact air or diesel hammers. Such hammers were not enclosed and were therefore very noisy.

How do you substitute noise?

The exposure to noise can be reduced by eliminating the source of noise (if possible), substituting the source with a quieter one, applying engineering modifications, using administrative controls, and by using protective equipment. The best way to reduce exposure to noise is to engineer it out at the design stage.

What is an H pile?

H-Piles are structural beams that are dimensionally square, most commonly driven into the soil for deep foundation applications to support large buildings and bridges. ... H-Piles are also commonly used for "soldier beam and lagging" construction in braced excavations such as building and subway foundations.

What is an Augered pile?

A piling technique; a Continuous Flight Augered Pile is a non-displacement pile used in difficult ground conditions. The drilling process is suitable for use in dense layers and is resistant to ground water or unstable soil conditions.

What are jacked piles?

Jacked in piles or piers are constructed using small-diameter steel pipes advanced to bearing depth by hydraulic jacks that are secured to the existing structure being underpinned.
